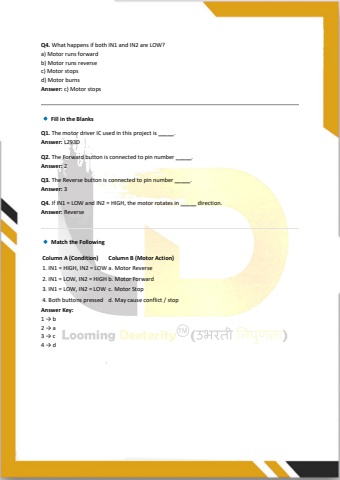

Q4. What happens if both IN1 and IN2 are LOW?a) Motor runs forwardb) Motor runs reversec) Motor stopsd) Motor burnsAnswer: c) Motor stops Fill in the BlanksQ1. The motor driver IC used in this project is _____.Answer: L293DQ2. The Forward button is connected to pin number _____.Answer: 2Q3. The Reverse button is connected to pin number _____.Answer: 3Q4. If IN1 = LOW and IN2 = HIGH, the motor rotates in _____ direction.Answer: Reverse Match the FollowingColumn A (Condition) Column B (Motor Action)1. IN1 = HIGH, IN2 = LOW a. Motor Reverse2. IN1 = LOW, IN2 = HIGH b. Motor Forward3. IN1 = LOW, IN2 = LOW c. Motor Stop4. Both buttons pressed d. May cause conflict / stopAnswer Key:1 %u2192 b2 %u2192 a3 %u2192 c4 %u2192 d
